What is a Vibrating Screen?
A vibrating screen is a mechanical device that utilizes vibration principles to classify, screen, or dewater materials such as granules, powders, or slurries. Through high-frequency vibrations generated by devices like vibration motors or exciters, the material on the screen surface is propelled into a tossing or sliding motion, enabling the separation of particles by size or solid-liquid separation.
Core Components
- Screen Box: A metal frame that supports the screen mesh and carries the material.
- Screen Mesh: Selected with varying aperture sizes to determine classification precision.
- Vibration Source: Such as vibration motors, eccentric blocks, or electromagnetic exciters, providing vibrational force.
- Damping Device: Springs or rubber pads to reduce vibration transmission to the base.
- Support Structure: Fixed or movable base.
Working Principle
After material enters the screen surface through the feed inlet, the vibration causes:
- Stratification: Smaller particles pass through the mesh (undersize), while larger particles remain on the screen (oversize).
- Conveyance: The vibration direction can be designed for forward or specific trajectories to assist material discharge.
Main Types

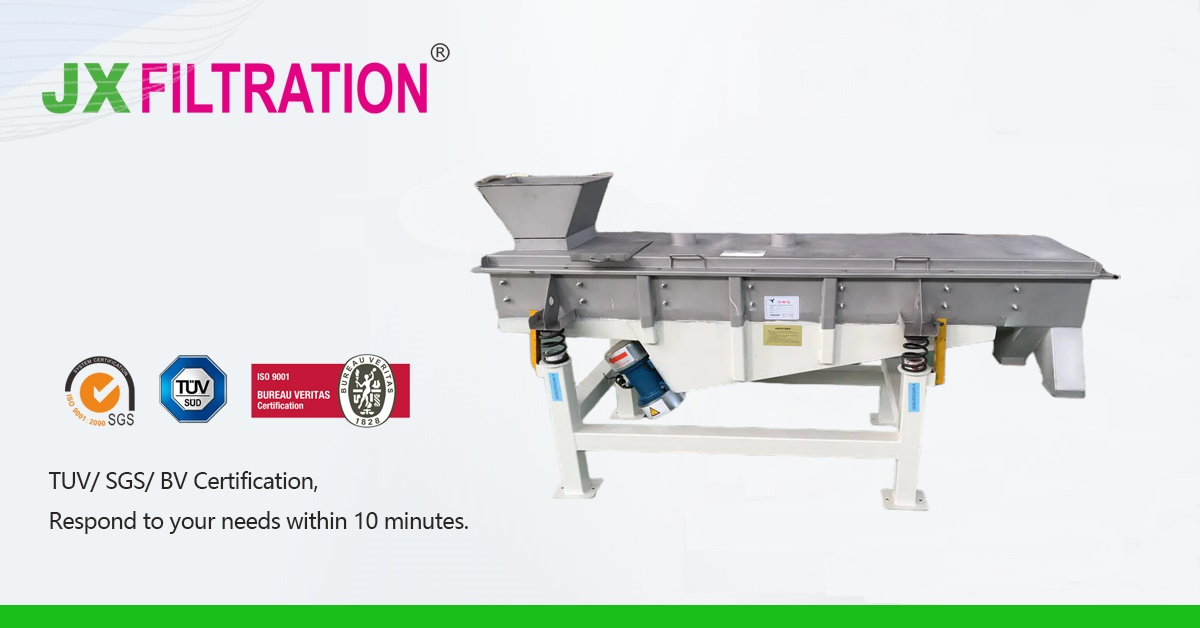

- Linear Vibrating Screen: Material moves linearly, suitable for high-capacity, medium-coarse particle classification.
- Circular Vibrating Screen (Rotary Vibrating Screen): Features 3D elliptical motion, ideal for fine screening (e.g., food, chemicals).
- High-Frequency Vibrating Screen: Used for fine particles (e.g., mineral slurry dewatering, tailings processing).
- Probability Screen: Rapid separation via steeply inclined screens—high efficiency but lower precision.
Applications
- Mining: Grading and dewatering of coal and ores.
- Chemical/Food Industries: Powder screening, additive filtration.
- Construction Materials: Particle size control for sand, cement.
- Environmental Protection: Solid-liquid separation in wastewater treatment.
- Pharmaceuticals: Fine screening of medicinal powders.
Advantages
- High Efficiency: Rapid processing of large material volumes.
- Flexibility: Adaptable to different particle sizes by changing screen meshes.
- Automation: Easily integrated into production lines.
Key Selection Factors
- Material Properties: Moisture, viscosity, particle shape, etc.
- Screening Goals: Throughput, precision requirements.
- Vibration Mode: Select trajectory (e.g., linear, circular) based on material flow characteristics.
Choosing a Vibrating Screen Means Choosing Efficiency and Quality
No matter your material processing needs, vibrating screens deliver high efficiency, stability, and low maintenance, making them a reliable assistant in your production line.
